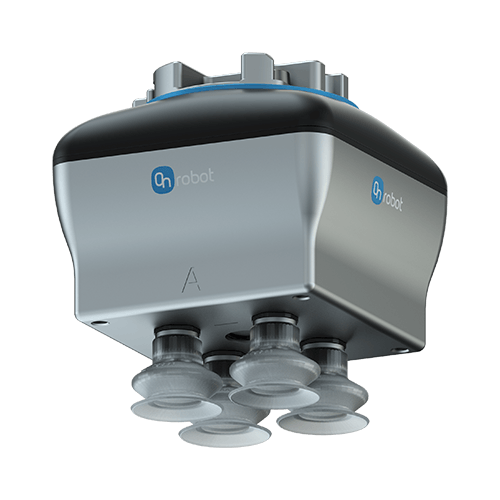

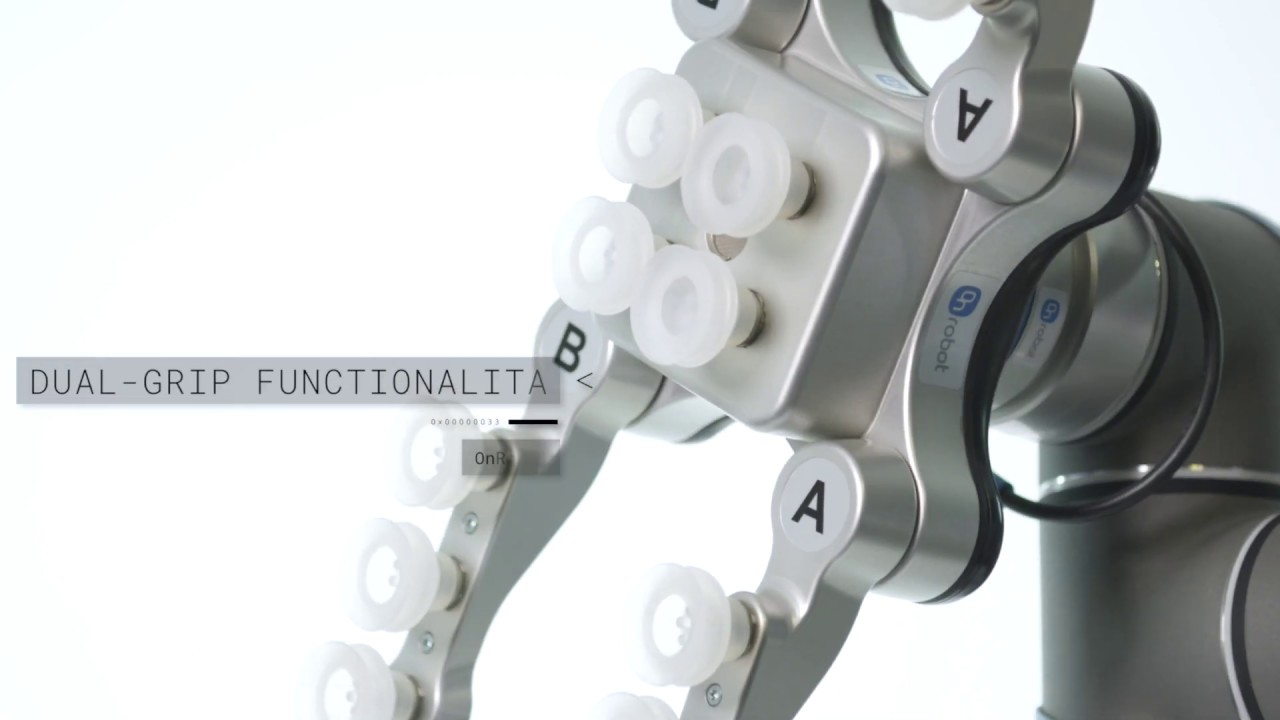

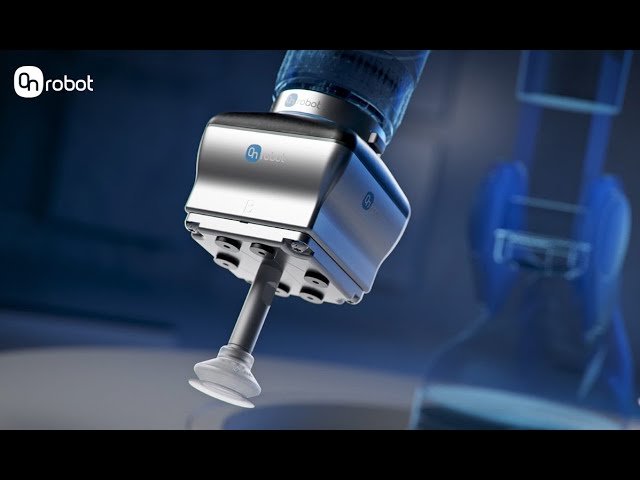

Electronic Vacuum Gripper ◆ VG10 & VGC10
| Model | VG10 | VGC10 | |||||
| Technical data | Min | Typical | Max | Units | Min | Typical | Max |
| Vaccum | 5% -0.05 1.5 | - - - | 80% -0.810 24 | [Vacuum] [Bar] [InHg] | 5% -0.05 1.5 | - - - | 80% -0.810 24 |
| Air flow | 0 | - | 12 | [Nl/min] | 0 | - | 12 |
| Power supply | 20.4 | 24 | 28.8 | [Volts] | 20.4 | 24 | 28.8 |
| Current consumption* | 50 | 600 | 1500 | [mA] | 50 | 600 | 1500 |
| Operating temperature | 0 32 | - - | 50 122 | [℃] [℉] | 0 32 | - - | 50 122 |
| Reach | 32 1.26 | - - | 358 14.09 | [mm] [in] | 101 x 100 x 100 3.97 x 3.94 x 3.94 | - | 101 x 100 x 100 3.97 x 3.94 x 3.94 |
| Adjustable arms | 0 | - | 270 | [º] | - | - | - |
| Holding torque arms | - | 6 | - | - | - | - | |
| Payload | 0 0 | - - | 10 22 | [kg] [lb] | - - | 10 22 | 15 33.1 |
| Vacuum cups | 1 | - | 16 | [pcs.] | 1 | - | 7 |
| Gripping time | - | 0.35 | - | [s] | - | 0.35 | - |
| Releasing time | - | 0.20 | - | [s] | - | 0.20 | - |
| Foot-inch-foot | - | 1.40 | - | [s] | - | 1.40 | - |
| *At 12V the gripper runs at approximately half the normal speed | By using three 40mm cups. More info in the table depending on payload and vacuum. | ||||||
| Number of Cups needed for non-porous materials | |||||||
